CIS 120: SpellChecker

All modern word processors, along with increasingly many other programs, have a built in spell check function that allows even the worst typist some level of efficiency. In this homework you will implement a rudimentary spell check program based on a dictionary and a list of corrections for misspelled words.

xkcd: Duty Calls

A few notes before we begin:

Recall: I/O and Collections

This homework is designed for you to gain practice with Java I/O (see java.io) and the Java Collections Framework (see java.util). The I/O package is very large with lots of different classes to choose from -- we recommend taking a look at the following interfaces and classes:

Input
Output
Collections

*Scanner is technically in java.util (not java.io) because it implements the Iterable interface.

Step 0: A High Level Look

In order to create the spellchecker, you will implement the following classes:

  1. TokenScanner: parses a text file and breaks it up into tokens (words and nonwords)
  2. Dictionary: parses a text file and creates a collection of words in the dictionary
  3. FileCorrector and SwapCorrector: given a misspelled word, suggests possible corrections from a dictionary or collection of corrections.
  4. SpellChecker: links the TokenScanner, Dictionary and Corrector to interactively spellcheck a document.

In addition to the provided files described above, we also provide several test classes (DictionaryTest, TokenScannerTest, etc.) and sample text files with which to test your code.

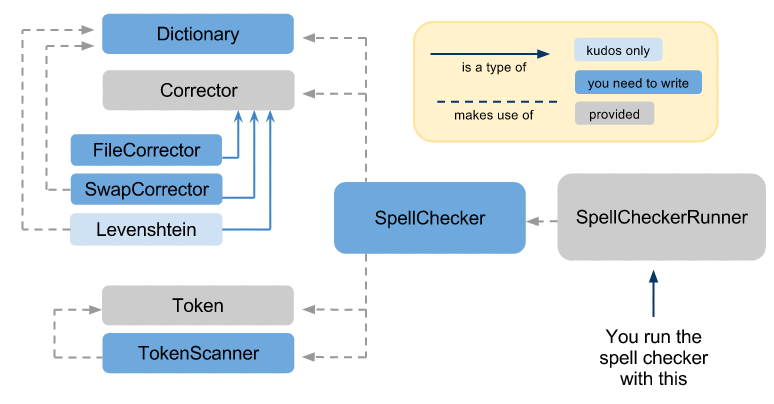

This diagram depicts how these files interact:

SpellCheck assignment flowchart

Step 1: Breaking Files into Tokens

File(s) to submit: TokenScanner.java and MyTests.java for test cases

Similar to the Histogram demo from lecture, you will first start with a helper class for reading the words in a file. The purpose of this class, which implements the Iterator<String> interface, is to read an input file and split it up into strings, called tokens.

There are two sorts of tokens: words and non-words. Word tokens only contain word characters. Nonwords do not contain any word characters. (A word character is either a letter (see Character.isLetter) or an apostrophe.) Given an input stream of characters, the TokenScanner should alternate between producing word and nonword tokens.

File Contents Expected Tokens
They aren't brown, are they? "They" " " "aren't" " " "brown" ", " "are" " " "they" "?"
It's time
2 e-mail!
"It's" " " "time" "\n2 " "e" "-" "mail" "!"

A few things worth pointing out:

The class TokenScanner, because it implements Iterator<String>, must provide the following methods (be sure to brush up on the javadocs):

1.1 Add tests

Read the TokenScanner javadocs, and then open up TokenScannerTest.java and examine the provided test cases.

Before you start your implementation, you should add more unit tests for this class to MyTests.java to exercise all of the intended behavior. What tests should you add? Think about various situations that could occur for your token scanner:

Make sure you create exhaustive unit tests. It is very easy to introduce an infinite loop in the implementation of TokenScanner, and you want to find out about such bugs before you continue to the remainder of the assignment.

1.2 TokenScanner.java

Next, implement TokenScanner so that it passes your tests. Note that the constructor is allowed to throw an IOException, but the next method should catch them and throw NoSuchElementException so that it conforms to the Iterator signature.

TIP: You may want to look at the WordScanner written in class for an example of how to approach this problem. We strongly sugget you just use this as an example. Copying that code and trying to force it to work for this class will cause more headaches than help.

TIP: Remember to close your input streams in your test cases! If you find a test is not running, you may need to delete the file or exit the Java process in order to manually close the stream.

Step 2: Building a Dictionary

File(s) to submit: Dictionary.java and MyTests.java for test cases

Before you can actually program the spellchecker you need a class that reads in words from the dictionary, stores them in memory, and provides efficient access to them. In this case, a dictionary is just a collection of 'legal' words, and does not store any definitions.

Begin by reading the Javadoc for the Dictionary class, to understand what it does.

2.1 Add Tests

Once you understand what the Dictionary class does, open DictionaryTest.java.

We only provide a few test cases in this file. Passing the given tests doesn't mean your code works for all inputs! Using the given test cases as a template, add test cases to MyTests.java for the following situations. By a test case, we mean that you should make the certain scenario happen, and check that the response matches what should happen, as outlined in the Javadocs. Use methods like assertEquals, assertTrue, assertFalse to verify the correct behavior (Recall that documentation for the assert methods can be found here).

Each bullet below should be its own test method:

Are there any other test situations or corner cases which may occur? We've left out some scenarios from the list above. You should write additional test cases for any other situations you think of.

TIP: Don't forget about null!

2.2 Dictionary.java

Once you feel confident that your tests cover all aspects of the expected behavior, open up Dictionary.java. We have provided template methods, and you will have to fill in the implementation.

You should run your tests, find what fails, and correct the code until your test cases pass.

Using the Right Data Structure

Choosing the right data structure to store the dictionary is crucial. If the dictionary contains 1,000,000 words, you don't want to be re-reading and searching through all of those words each time isWord() is called. The implementation of the data structure is also important - different ways of storing data make different operations efficient. Ask yourself:

TIP: If your code takes more than two or three seconds to run all your Dictionary tests, it will take even longer to pass our tests, and this risks running into our timeout (note that if such a timeout happens, your tests will show as "failed".). In other words, you are using the wrong structure!

It is critical that your Dictionary works properly before moving on! Make sure that the method signatures match those in the Javadoc exactly.

Step 3: Adding Correctors

File(s) to submit: FileCorrector.java, SwapCorrector.java and MyTests.java for test cases.

Suppose while reading a file we encounter a word that is not in a dictionary. How could we fix it?

Corrector is an abstract class where the getCorrections method is abstract. An abstract class has some similarities to an interface; the biggest difference is that abstract classes can have some implemented methods. Here matchCase is implemented, but getCorrections is not. Any subclass of Corrector must implement getCorrections, and thus be able to provide corrections for a given misspelled word. You will implement two different kinds of Correctors:

  1. FileCorrector - uses a reference text file containing common misspellings to provide suggestions for a misspelled word.
  2. SwapCorrector - uses a Dictionary and suggests any words from it that are a single "swap" from the given incorrect word. For example, it might suggest "this" if the incorrect word was "thsi". A swap is two adjacent letters that are reversed in their positions.

3.1 Add Tests

Read the documentation for FileCorrector, and then add the following test cases (plus your own) to MyTests.java:

The list above isn't comprehensive, so make sure to add your own additional test cases for any other behavior described in the Javadocs.

3.2 FileCorrector.java

When you are finished adding test cases, write the FileCorrector class and ensure it passes your tests. Think carefully about which data structure is the best suited for storing the data read from the file.

TIP: You may want to look at the indexOf, substring, and trim methods of String to help you extract the incorrect and correct words from any given line.

TIP: This tip applies to writing both FileCorrector and SwapCorrector.

The getCorrections method requires that the suggested corrections have the same case as the given incorrect word. Thus, if "pease" was the incorrect word, we should suggest the set {"peas", "peace"}, but if either "PEASE" or "Pease" or "PeAsE" is the incorrect word, we should suggest back the set {"Peas", "Peace"}. (Only first letter capitalization is relevant.)

To help with the capitalization correction, the abstract class Corrector has a helper method matchCase that FileCorrector and SwapCorrector can both use. Notice how putting this in the parent class allows us to avoid duplicating code in the two subclasses.

3.3 Adding Tests

Repeat the above procedure for implementing SwapCorrector: look at the Javadocs and add necessary test cases

Here are some suggested test cases, but we've left out quite a few:

TIP: Remember that you can create your own dictionary files to help with testing! For example, if you make a test case that asks for corrections for the incorrect word "abcd", you may want to create your own dictionary file that contains "bacd", "acbd", etc and ensure your method doesn't miss any of the swaps!

3.4 SwapCorrector.java

Now, implement SwapCorrector.java

All IOExceptions that may result from the execution of the Correctors do not need to be caught.

Read the Javadocs closely for the Correctors and make sure to test all of the possible edge cases!

Step 4: Creating the SpellChecker

File(s) to submit: SpellChecker.java and MyTests.java for test cases

The end is near!

You need to put all of the classes together. A SpellChecker object takes in a Corrector and a Dictionary when constructed. When checkDocument is called, reads tokens from the input document, spell-checks any incorrect words, and writes the output to a file using a Writer object.

Most of SpellChecker has already been written, except for the method that processes the document and does the checking.

Sample Output/Interaction

Click here to see a sample of the output and interaction functionality we expect to see when running the finished program. You should closely emulate this output in your SpellChecker class.

4.1 checkDocument in SpellChecker.java

Complete the checkDocument method in SpellChecker.java so it matches the functionality above. Bear in mind the following:

Testing: Command Line or Running in Eclipse

The sample test case in SpellCheckerTest uses a file as the "user" input so it can run automatically.

The recommended way to run your spellchecker is from the command line. See the README in Codio for more information. From the root directory of your project in your workspace:
java -cp bin SpellCheckerRunner files/Gettysburg.txt files/Gettysburg-out.txt files/dictionary.txt files/misspellings.txt

TIP: If you are encountering an infinite loop when using theFox.txt, pay attention to how your token scanner handles end of file characters.

Challenge Problem

If the drive to create the world's best spell checker has consumed you, you can implement a third type of corrector, Levenshtein.java. This kind of Corrector proposes words that are a Levenshtein distance of 1 away from the incorrect word. This is kudos-only and worth no points.

Compiling: xkcd.org

Submitting and Grade Breakdown

As usual, you will be submitting on the submissions page. You should submit a zip file named hw08-(time)submit.zip containing:

	src/Dictionary.java
	src/FileCorrector.java
	src/SwapCorrector.java
	src/TokenScanner.java
	src/SpellChecker.java
	src/Levenshtein.java
	test/MyTests.java


If you are using Codio

These files should be organized similar to above (with a src and test directory). The easiest option is to use the Zip menu item in Codio. Do not include any of the other provided files, since doing so may cause your submission to fail to compile.

If you are using Eclipse

The grade breakdown among the problems is as follows:

Eclipse Instructions

Setting up in Eclipse: After downloading the homework files and unzipping them, open up Eclipse and follow these instructions:

  1. Go to File --> New --> Java Project
  2. Name your project, then click Next, Libraries, Add Library..., JUnit, Next, select JUnit 4, and click Finish twice
  3. Click on Import..., General, File System, Browse and search for the folder in which the homework files were unzipped (usually hw08_temp)
  4. Select this folder and click Ok
  5. Check the box to the left of the folder's name and then uncheck the boxes for all of the files that start with a '.' (e.g. .settings), then click Finish
  6. Right click on the test folder and choose Build Path --> Use as source folder
  7. You're done! Happy coding!

Running the command line spellchecker in Eclipse: When you run the SpellChecker through Eclipse, you will need to refresh the Eclipse package in order to see the newly created output file.

  1. Go to Run > Run Configurations.
  2. Right click on Java Application and choose "New".
  3. Under "Main class", you should put SpellCheckerRunner.
  4. Switch from the "Main" tab to the "Arguments" tab.
  5. Under "Program arguments:", you can put the inputs to the runner. For example:
  6. You can give this configuration a name in the "Name:" bar at the top, so you can identify this from other runs.
  7. Hit "Apply" and "Run".
  8. The program will run in the "Console" tab, normally at the bottom below your code editors. (Your layout may be different.)

You can return to this configuration and change the arguments to run it with different input files, or to switch between different types of Correctors.

To edit a configuration, in the Run Configurations panel, select the named configuration under "Java Application" on the left side.

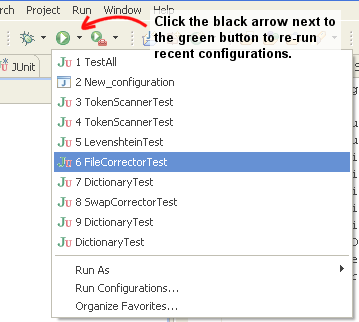

To re-run a configuration (after it has been set up), you can choose the configuration (as if you were editing it) and hit "Run". Alternatively, if you have recently run it, you can click the little arrow next to the green button at the top of Eclipse:

Eclipse rerun configuration

Running the Spellchecker GUI in Eclipse:

    Right click spellchecker-gui.jar and click Run as and then Java Application
